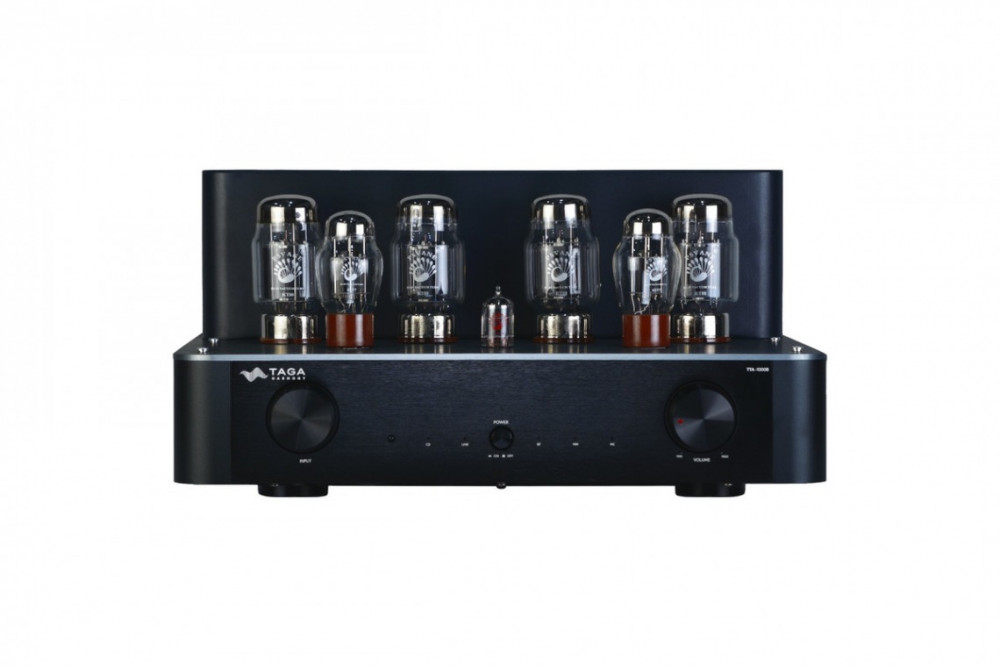

TAGA Harmony TTA-1000B

En rejäl rör-förstärkare i den högre ligan, när analogt ljud är som bäst. Med en viktklass på 24kg förstår man att det här är ett seriöst bygge, den har utrustats med mycket utsökta komponenter och förmedlar kvalitet rakt igenom.

• 2x60w (4ohm) från 4x KT88 rör som arbetar i Push-pull
• Inbygg RIAA-steg så du kan spela din favoriter från vinylspelare
• En bastant frjärrkontroll i ren aluminium för enkelt handhavande
• RCA-utgång för inkoppling av separata slutsteg eller subwooder
• Bluetooth 4.0

OTHER KEY FEATURES

• Sleek aluminum front panel design suitable for most interiors.
• Class A amplification to provide the best linearity, signal gain, efficiency and power output.
• Audiophile-grade coupling capacitors: Evox for input tubes and Wima for connecting driver tubes with the output amp, and Rubycon capacitors in the amp section.
• High-quality toroidal EI broadband sound output transformer provides voltage stability and constant and immediately-available energy at any volume level.
• Independent rectifier and filter circuits in the supply power for both channels.
• The audiophile grade ALPS volume potentiometer ensures minimal noises and channels crosstalk and has excellent operational feel and limits errors between the two channels.
• Ceramic tube sockets with gold-plated contacts to get the most of the tubes.
• 3 analog inputs with high-end solid machined brass RCA sockets including a turntable input (both MM and MC cartridges) to enjoy music from vinyl records.
• High-end, gold-plated speaker terminals accept raw speaker cables up to 10AWG and most popular types of connectors.
• Preamplifier output dedicated for an optional external power amplifier or powered subwoofer and speakers.
• Removable Schuko-IEC C13 power cable gives an option to upgrade the system with a premium audiophile power cable in any time.
• Aluminum remote controller.

The TTA-1000B sound is very linear, warm, natural and fresh with a deep multidimensional soundstage and high dynamics. Enjoy the analog sound at its best – Enjoy the TTA-1000B!

• Design: Vacuum tube amplifierPush-pull Class A
• Vacuum tubes: PSVANE Classic Series4 x KT88, 2 x 6SN7, 1 x ECC83Triode operation modeManual bias regulation
• Power output / impedance: 2 x 30W 8ohm2 x 60W 4ohm
• Wireless connectivity: Bluetooth® v4.0
• Analog inputs: CD, Line:• Sensitivity: 450mV• Impedance: RCA 50K ohmPhono input (MM/MC):• Input impedance: 47Kohm | 47ohm• Gain: 40dB | 60dB• Output power: 400mV | 400mV, THD ≤1%
• Analog outputs: RCA Pre-Out
• Frequency response: 10Hz – 30kHz (±1dB)
• Total Harmonic Distortions: ≤0.35% (1KHz/2V)
• Signal/Noise ratio: ≥89db
• Features / accessories: Manual bias adjustmentAluminum remote controllerTube cage (factory installed)Removable Schuko-IEC C13 power cordWhite cotton gloves
• AC power / power consumption: 230-240V 50Hz, 400W
• Dimensions (H x W x D): 22.5 x 45 x 37.5 cm
• Weight: 24 kg / pc.
