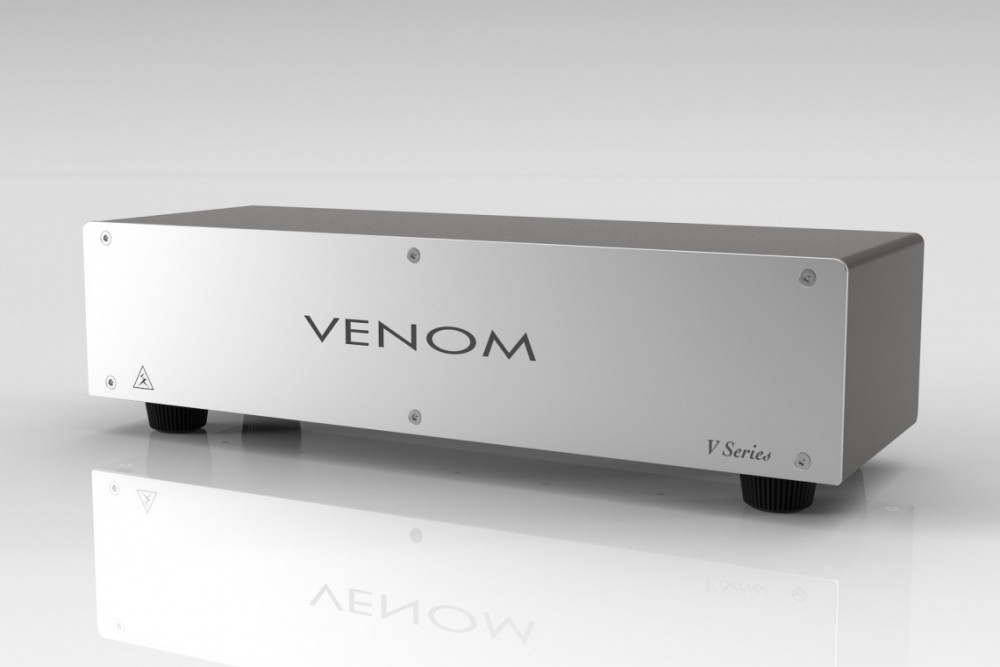

Shunyata Venom Series V6
24 215 kr
Shunyata Research Venom Series V6
25 YEARS OF EXPERIENCE & SCIENTIFIC INNOVATION
Shunyata Research’s Venom Series V6 is the beneficiary of more than 20 years of scientific innovation and performance based engineering. The measurement and testing protocols Shunyata Research developed for its medical division products are now available in the Venom V6. As a result, the V6 delivers high-current capacity (DTCD™) and exceptional noise reduction (CCI™) abilities. The Venom V6 allows music and film enthusiasts to truly experience their favorite music as never before.
The Venom V6, similar to Shunyata Research’s reference model power distributors provides a full sixteen amps of current, allowing it to power high-end systems including high powered amplifiers. Additionally, the V6 offers Shunyata Research’s proprietary CCI™ noise reduction filters along with its Trident Defense transient protection system. Vibration control is addressed with internal dampening and Shunyata’s own proprietary stainless steel vibration dampening feet. As a finishing touch, the Venom V6 receives four-days of Shunyata Research’s proprietary KPIP™ processing which significantly reduces burn-in time.
True to form, Shunyata Research over-engineers its most affordable products to over-deliver on value and performance at prices every serious music and mover lover can afford. There is no better example of Shunyata Research’s meteoric achievements in performance and value than that provided by the Venom Series V6 power distributor.
CCI™ NOISE REDUCTION
Traditional power conditioners are designed to block incoming noise from outside the home, but do not address the noise that is generated by the electronic components themselves. In fact, most conditioners reflect noise back into other components connected to the power conditioner. CCI™ (Component-to-Component Isolation) is one of the most significant but often overlooked aspects to power system performance. The CCI™ filter consists of a proprietary multi-stage filter that reduces electrical noise and interference generated by a component’s power supply.
ArNi® Conductors
Shunyata Research’s ArNi® conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents.
And finally, every ArNi® wire undergoes our proprietary KPIP™ process.
Electromagnetic Breaker
Over-current protection is a requirement for today’s high current audio power distributors. The vast majority of manufacturers use an inexpensive thermal fuse or breaker. Both are specifically designed to heat up as the current level rises. This causes voltage drops, increased contact impedance, thermal noise, excessive heat generation and current limiting effects. There is a better solution — the hydraulic electromagnetic breaker that utilizes low-impedance relays and a sensing coil that reads the current level without heating up or limiting current. They can operate right up the to the maximum current level without heating up or limiting instantaneous current. They are rarely used in competitive products since they cost 10-20 times that of a common fuse or thermal breaker.
After years of research into the negative effects of vibration, Shunyata Research developed its own vibration isolation using sub-miniature accelerometers that accurately measures the effects of floor and airborne sound waves. We use it in the development of vibration absorbing materials such as energy absorbing footers, AC outlet gaskets and chassis dampeners that reduce resonant vibration. Recognizing that vibration control is important to overall performance, our chassis are made with optimally dampened steel and aluminum, rather than plastic or thin-wall sheet metals.
KPIP™ PROCESSING
Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP™ processing to dramatically reduce burn-in time and significantly improve sonic performance, delivering a relaxed and life-like presentation.
Sonic Welding
Simple crimping, soldering, brazing and screws are all inferior methods of joining two wires or terminals together. Sonic welding uses high-energy sonic waves to literally join two metals together at a molecular level and cold-welding uses high-energy pneumatic pressure to bond metals. Shunyata Research uses both methods to secure connections that do not degrade over time.
Cryogenic Processing
Shunyata Research operates its own onsite Cryogenics International computer-controlled cryogenic plant. Liquid nitrogen is used to reduce the temperature of the contents to -320 degrees Fahrenheit. The computer monitors and lowers the temperature by a single degree at a time to prevent thermal shock.
We use this process to improve the performance of connectors and various electrical components that are used in our power products and signal cabling.
SPECIFICATIONS
- Maximum Voltage:220-240 VAC r.m.s. unregulated (EU)
- Input Current Ratings:Maximum Continuous Current: 16A (EU)
- Output Current Ratings:Max Current/Outlet: 16A (EU)
- Transient Suppression:Maximum Transient Protection: 40,000 A @ 8/50 μs
- Over-Current Protection:Hydraulic Electromagnetic Breaker
- Wiring System:4 mm2 ArNi® VTX™ Buss SystemRatings: 600 V 105° C
- Noise Suppression:Input to Output (100 kHz – 30 MHz): > 24 dB reductionZone to Zone (100 kHz – 30 MHz): > 26 dB reduction
- CCI Filters: 3
- Outlets & Connectors:Inlet: IEC C19REU Sockets: 6 CEE 7/3
- Vibration Control:Vibration dampening panels (internal)AC outlet dampening gaskets
- Construction:Aluminum and steel chassisAnodized, aluminum faceplate
- Dimensions:Width: 43.2 cmDepth: 22.9 cmHeight: 11.7 cmWeight: 4.3 kg
