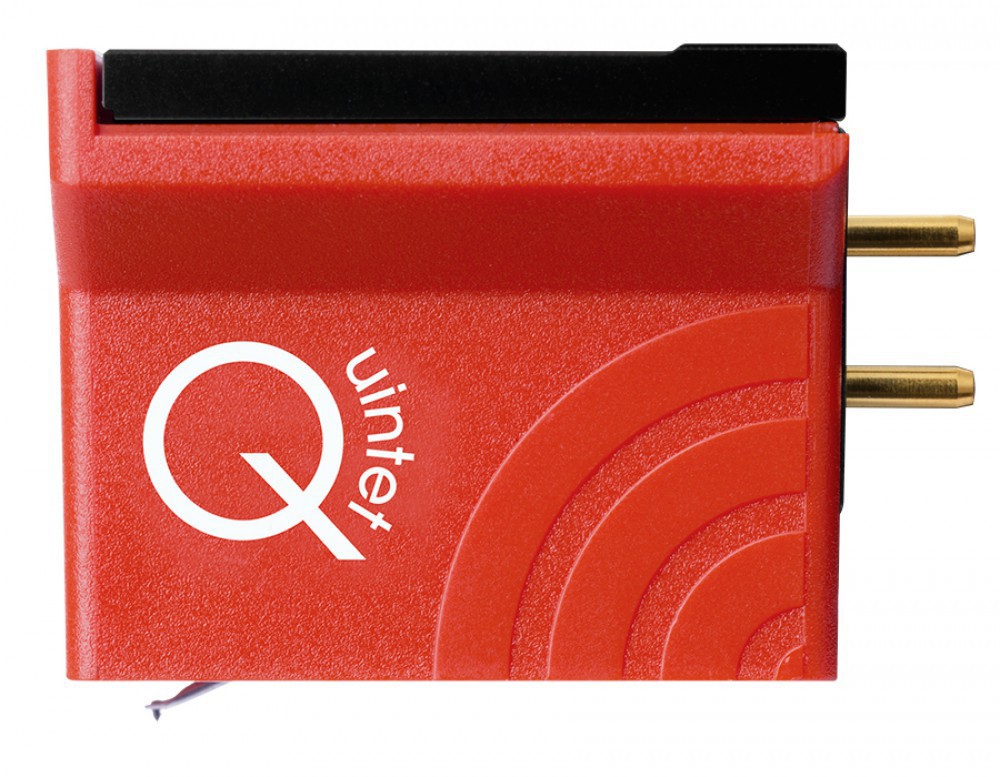

Ortofon Quintet Red

Mycket välspelande MC-pickup med elliptiskt slipad diamantnål. Ett perfekt sätt att introducera Moving Coil-principen för din skivspelare.

Specifikationer

• Output voltage at 1 kHz 5 cm/sec: 0.5 mV
• Channel balance: < 1.5 dB
• Channel separation at 1 kHz: > 21 dB
• Channel separation at 15 kHz: > 14 dB
• Frequency range at -3 dB: 20 - 25.000Hz
• Frequency response 20-20.000 Hz: +/-2.5 dB
• Tracking ability at 315 Hz at recommended tracking force *): 65 μm
• Compliance, dynamic, lateral: 15 μm/mN
• Stylus type: Elliptical
• Stylus tip radius r/R: 8/18 μm
• Tracking force range: 2.1-2.5 g (21-25 mN)
• Tracking force recommended: 2.3 g (23 mN)Tracking angle: 20º
• Internal impedance, DC resistance: 7 Ohm
• Recommended load impedance: >20 Ohm
• Cartridge body material: ABS/Aluminium
• Coil wire material: Copper
• Cartridge colour: Red
• Cartridge weight : 9g
