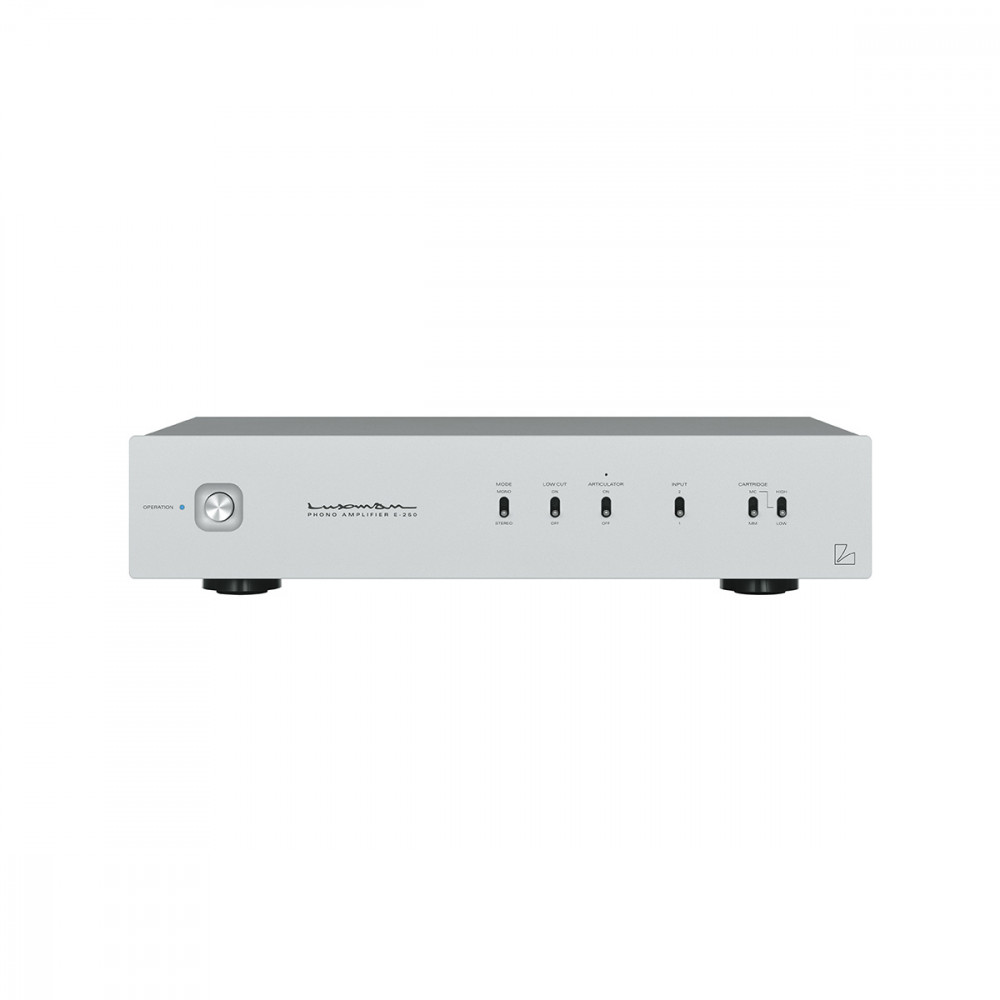

Luxman E-250

A complete phono equaliser designed for rich vinyl playback with 2 inputs.

The E-250 is the latest phono amplifier from LUXMAN, inheriting the best in design from its predecessor the E-200 that has been the reference model for compact phono equalizer amplifiers since it was released in 2008. A newly added function to the E-250 is the switching capability of load impedance and load capacity according to the cartridge characteristics for the ultimate enjoyment of the original detail of analog reproduction. The E-250 allows the listener to adjust the fine settings for every performance, releasing the expression engraved in the grooves and creating a hitherto unknown musical impression.

Specifikation:

• Circuiting system: NF type equalizer amplifier
• Input sensitivity MM: 3.2mVMC HIGH: 0.37mV, MC LOW: 0.12mV
• Input impedance: MM: 34kΩ/47kΩ/56kΩ/100kΩ (switch selection). MC HIGH: 40Ω, MC LOW: 2.5Ω
• Rated output/output impedance 250mV/300Ω
• Gain MM: 38dBMC HIGH: 57dB, MC LOW: 66dB
• Maximum allowable input (1kHz) MM: 120m. VMC HIGH: 15mV, MC LOW: 5mV
• RIAA deviation MM: 20Hz to 20kHz (±0.3dB),MC HIGH/MC LOW: 20Hz to 20kHz (±0.5dB)
• Total harmonic distortion: 0.003%
• S/N ratio (IHF-A) MM: 90d. BMC HIGH: 83dB, MC LOW: 80dB
• Channel separation (10kHz): 91dB
• Input Unbalanced line x 2
• Output Unbalanced line x 1
• Power supply: 230V~(50Hz) / 115V~(50Hz)
• Power consumption: 7W
• External dimensions: 364(W) x 81(H) x 274(D) mm. Front side knob of 6mm and rear side: terminal of 11mm included in depth
• Net weight: 4.3kg (main unit)
