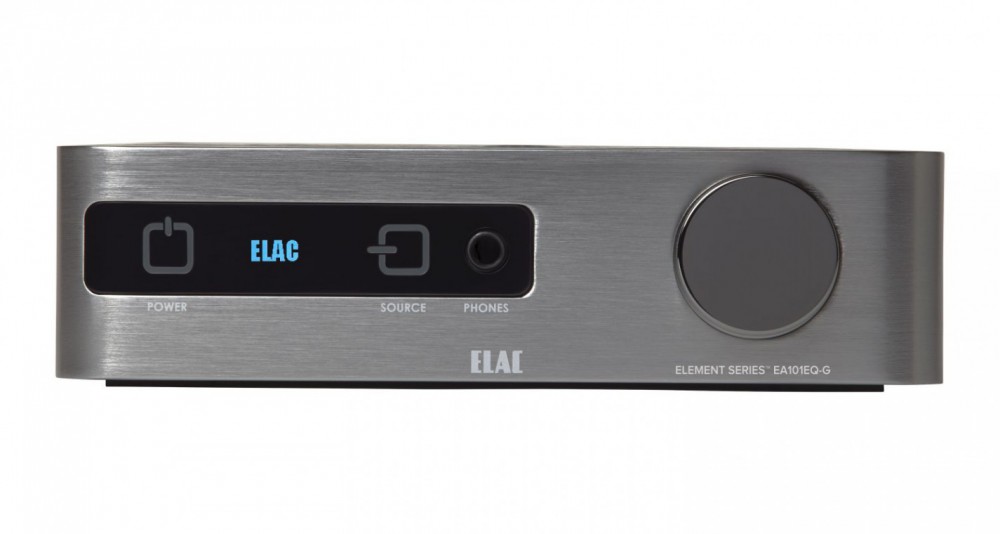

ELAC Element EA101EQ-G

Supersmart förstärkare som kan anpassas automatiskt till dina högtalare, rum och eventuell subwoofer. Den kan också lära sig att styras exempelvis med din TV-fjärrkontroll! Till programmering, styrning och kalibrering används en bluetooth-app för Android eller iOS.

80 Watt-per-channel integrated amp with DSP This integrated amplifier marks ELAC’s return to the amplifier category. The Element Series EA101EQ-G Integrated Amplifier solves two of the biggest problems with two-channel audio: proper blending of a subwoofer with your main speakers and room correction. Our advanced DSP and innovative smartphone application provide all the tools necessary for anyone to achieve a true audiophile system at an affordable price.

The Element EA101EQ-G makes quite a statement and is guaranteed to change the rules of the game for integrated amplifiers, with sound quality and feature-rich control flexibility that make it the go-to solution for a no-compromise sound system. Once you experience what it can do—especially with the new Debut, Uni-Fi, or Line 240.3 loudspeakers—your world of sound just might be altered forever.

Specifications:

Amplifier: BASH Digital Fidelity Tracking Amplifier Power output

Continuous:

• 2 x 80 Watts 2 channels driven into 4 ohms @ 1kHz
• 2 x 40 Watts 2 channels driven into 8 ohms @ 1kHz
• 2 x 70 Watts 2 channels driven into 2 ohms @ 1kHz

Power output burst (CEA 2010*):

• 120 Watts 1 channel driven into 4 ohms @ 1kHz
• 65 Watts 1 channel driven into 8 ohms @ 1kHz
• 170 Watts 1 channel driven into 2 ohms @ 1kHz

Power and THD+N, 1kHz:

• 4 ohms 70 Watts @ .07%
• 8 ohms 40 Watts @ .03%

Signal-to-Noise Ratio: (Full Power Digital input): 101dB

Broadband Frequency Response: 20Hz to 40kHz +/- 1.8dB

Analog inputs: 2

Digital inputs: 3 total; 2 optical / 1 coaxial (192kHz 24-bit)

USB input: 192kHz 24-bit asynchronous

Subwoofer Output: 1

Headphone output: 1 (100mW @ 16 ohms)

Bluetooth audio: Yes with aptX

Display: OEL

App Control: Yes, iOS and Android control app

Bluetooth 4.0 low-energy Android or iOS device is required to use this application.

Room Correction: ABC (Auto Blend & Calibrate)

Power Consumption:

• Power Off 120Vac: .86W
• Auto Off 120Vac: 5.45W
