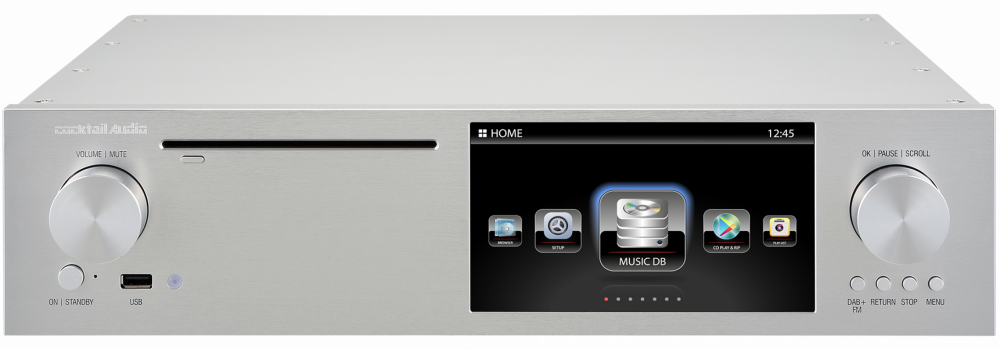

cocktailAudio X50(D)
27 990 kr
Alla tillbehör
cocktailAudio X50(D)
- Streamer med stöd för roon, MQA, TIDAL, Spotify Connect och Airplay
- Server med två interna hårdiskfack (intent SSD fack) och 3st USB 3 ingångar för minnessticka eller portabla hårddiskar
- Nätverksstöd Stödjer olika nätverksprotokoll som UPnP Server / Client / Renderer, Samba Server / Client
- Dual Core ARM Cortex A9 processor 1.0GHz med ytterligare 32Bit/500MIPS Microcontroller skräddarsydd smart mjukvara
- CD- spelare för uppspelning
- CD-ripper inbyggd för att enkelt rippa alla dina CD-skivor till intern/extern hårddisk, bit-ferfect och i förlustfritt WAV-eller FLAC-format med metadata och album konvelut från Gracenote. Kräver att man monterar en hårddisk i spelaren eller kopplar via USB. (Säljs separat)
- USB AUDIO OUT för att uppgradera med en extern High-End DAC utan begränsningar
- MULTI DIGITAL in- och utgångar USB Audio-, optisk-, coaxial-ingångar samt AES/EBU XLR in- och utgångar
- HDMI- & I2S OUT (ethernet-out) 2st HDMI för extern skärm eller ljud och 1st I2S för ljud
- WORLD CLOCK utgång för en extern klocka
- 12v trigger in och ut
Information från tillverkaren:
cocktailAudio X50(D)
Most versatile and powerful Pure Digital Music Server with database, CD Ripper, Network Streamer and much more.
Features of Hardware and Engineering
- Equipped with high-performance Dual Core ARM Cortex A9 processor running at 1.0Ghz
- XMOS 32bit/500MIPS 8 Core Powerful Microcontroller
- DDR-1066 1GByte Main Memory and 8GByte Nand Flash Memory
- High speed optical disk drive for quick CD ripping
- 7 inch TFT LCD(1024 x 600 pixels) screen for intuitive GUI
- DAB+/FM Tuner built-in
- USB Audio Class 2.0 Output for connecting to an USB Digital-to-Analogue Converter(DAC)
- I²S Digital Out(RJ45 & HDMI) to support up to Native DSD including 24bit/192Khz
- Giga Fast Ethernet(10/100/1000Mbps) built-in
- Support up to 8TB(Tera Bytes) storage like 3.5"/2.5" hard disk or SSD
- Using RAID System function, total 16TB storage configuration is possible
- HDMI Out connector for using an external screen like TV as its GUI screen
- Rugged chassis construction with full aluminum body chassis by CNC cutting
Versatile Software functionalities and usage
- Support various file formats like MQA, DSD(64/128/256), DXD(24Bit/352.8Khz), including 24Bit/192Khz WAV/FLAC and full range hi-res audio file formats
- CD Ripping with professional CD metadata and album cover art provided by Gracenote
- Make your own digital music file collection of DAB+/FM radio and Internet radio to X50D MusicDB via its recording function with hi-res sampling rate 24bit/192Khz
- High Connectivity
- Various network protocol supported(UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server,Web Server, etc
- Major Music Streaming Services(TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, Spotify Connect) and Internet Radio(Airable) available
- Customized Remote Control App, NOVATRON MusicX for iOS and Android
- Customized WebInterface(WebUI) for remote control and MusicDB management by PC
- Support 'Roon Ready', which is the famous Music Player for Music Lovers
High Performance System Resources and custom-designed software
Based on Dual Core ARM Cortex A9 main processor running at 1.0GHz, additional 32Bit/500MIPS Microcontroller and custom-designed smart software, the X50D will satisfy highend audiophiles and all music lovers with great performance and versatile features.
Wonderful Sound Quality created by in-house circuit design know-how and qualified components
Our all experiences, know-how and technoligies for digital circuit design accumlated for long period and qualified components are applied completely to the X50D to deliver great sound to music lovers.
XMOS 32Bit/500MIPS 8 Core Powerful Microcontroller
X50D can support up to Native DSD256 via its I²S Digital Output(RJ45 & HDMI) for highend audiophiles who have already a nice DAC which has I²S Digital Input.
DAB+ Tuner and FM Radio Tuner
For high quality digital radio and traditional FM Radio, X50D offers DAB+ tuner and FM tuner.
High Quality Digital Out Terminal
Two Coaxial Out, Toslink and AES/EBU XRL are available to let users make perfect audio component system by connecting to various external devices.
USB Audio Class 2.0 Output
For music lovers and audiophiles who have already nice USB DAC, the USB Audio Out solution will be very useful.
12V Trigger Out and In
You could use 12V Trigger Out/In to trigger(on/off ) a connected device like amplifier.
Word Clock
Via this Word Clock Out, X50D will send out the sample rate signal of currently playing file.
Two High Speed USB3.0 Host Ports
For quick data transfer purpose, X50D offers two(2) high speed USB3.0 Host ports at rear side.
HDMI for bigger external screen or Audio out
Via this HDMI out, users may connect to bigger external screen for GUI, or connect to an audio devices which have HDMI input.
RAID System with Two Storage Deck for Music Server
X50D offers two storage decks which accept 3.5"/2.5" SATA hard disk and Solid State Drive(SSD). According to users' purpose, they can setup RAID system easily. X50D offers three(3) kinds of RAID mode such as Mirror, Stripe and Big.
CD Ripping with Gracenote CD metadata and Album cover art
Load all your CD collection onto the X50D Music Database in FLAC, ALAC, WAV or MP3 file format with professional CD metadata and album cover art from Gracenote.
Music Database function
The X50D has a well-organized Music Database built-in, which offers very nice and convenient functions like SEARCH, display by text or cover art, SORT, various View, etc.
Digital Inputs
X50D has digital inputs(Toslink & Coaxial) for connecting to external source devices. You can make your own digital music collection by X50D's recording function.
Recording with 192Khz hi-res sampling rate
The X50D offers a recording function for internet radio, DAB+/FM radio and Digital Inputs. You can make your own digital music collection with wonderful sound.
Auto/Manual Cutting for the recorded files
Auto/Manual cutting function to edit the recorded files is available at the X50D. You can easily edit files and import them into X50D Music Database.
Versatile Networking and Remote Control with a Customized App
Connect the X50D to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customized remote control app, NOVATRON MusicX or WebInterface.
Control remotely by mobile devices with customized Remote Control App, NOVATRON MusicX app
Major Music Streaming Services integrated
You can access tens of thousands of internet radio stations and online music services like TIDAL, Deezer, Napster and Qobuz including Spotify Connect function.
Control remotely by PC with WebInterface
Control the X50D remotely by your PC with its nice WebInterface function.
Support various network protocols like UPnP Server/Client/Renderer, Samba Server/Client
Stream songs to and from other compatible devices in the same network.
AirPlay and Spotify Connect
You can play songs from iOS devices and musics from Spotify via X50D wirelessly.
Control X50D by Roon
As X50D supports 'Roon Ready', you can control X50D with Roon, which is great music player for music loves.
7 inch TFT LCD Screen for Intuitive GUI and HDMI Out for external screen
7 inch big screen will let you control the X50D easily with intuitive GUI, and connect it to your TV for an external screen to view bigger GUI or a slideshow of photos while listening to your music collection.
DAB+/FM Radio Tuner built-in
Enjoy high quality digital radio via DAB+ Tuner, and record any song or broadcast with high quality sound.
High Connectivity for various external devices
- 2 x USB3.0 host at rear and 1 x USB 2.0 host
- GigaFast Ethernet LAN
- HDMI Out for external screen or Audio out
- USB Audio Class2.0 Output
- Digital Outputs(2 x I²S, 1 x Word Clock, 2 x Coaxial, 1 x Toslink, 1 x AES/EBU XRL, 1 x HDMI)
- Digital Inputs(1 x Coaxial, 1 x Toslink)
Two(2) Storage Decks for Music Server
Two(2) Storage Decks for Music Server
3.5"/2.5" SATA hard disk and Solid State Drive(SSD) is accepted to the X50D, which supports up to 8TB capacity of individual storage. X50D offers RAID System configuration. According to users' purpose, they can setup RAID system easily by themselves. It offers three(3) kinds of RAID mode such as Mirror, Stripe and Big.
Rugged and durable casing with full aluminum CNC cutting
The X50D front panel is based on 13mm thickness aluminum with CNC cutting, and whole body also is based on full aluminum CNC cutting. The die-cast aluminum feet provide rigidity along with additional resistance from external vibration.
| Stereo | |
|---|---|
|
Digital utgång (Transport)
|
Ja |
|
HDMI eARC/ARC
|
Ja |
