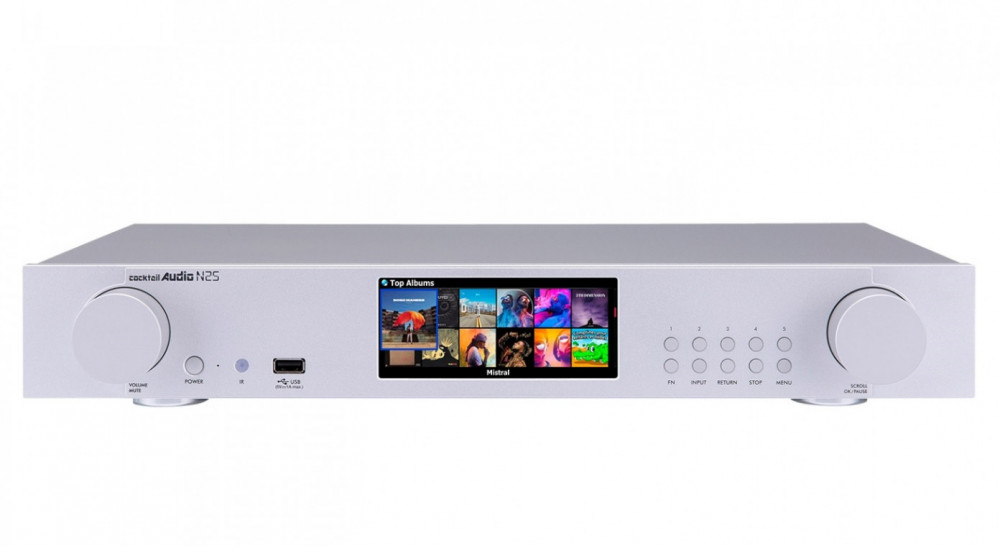

The N25 is the World’s most advanced Network Audio Player, featuring a Sabre32 Reference DAC chip and high-performance Dual Core ARM Cortex A9 processor, running at 1.0Ghz. It has been designed to meet all the requirements of digital music playback, keeping pace with today’s digital world. The N25 is based on long proven cocktailAudio technologies, such as the hardware circuit design and versatile custom-designed software, developed by an in-house R&D team, to achieve the best audio performance and ease of use across all its functions.

It offers high-quality playback from local USB storage, home network sources like NAS, major online streaming services, internet radio, DAB+/FM radio, aptX HD Bluetooth, Spotify Connect, Airplay for iOS devices and much more. Optionally, the N25 provides Bluetooth transmission, allowing playback of music from the N25 via Bluetooth headphones or speakers. It also supports playback covering a huge variety of audio formats including, DSD, MQA, DXD, HD FLAC, HD WAV, CAF, ALAC, AIFF and more.

Additionally, for use as a complete and convenient music system throughout the home, the N25 provides not only a Multiroom Function(Group Play), carefully developed by the cocktailAudio team over several years, but also a HDMI ARC input to connect with TVs.

Finally, when paired with optional extras, you can expand its functionality as a music server, aptX Bluetooth transmitter, and more.

Host CPU & Memory:

• CPU: Dual Core ARM Cortex A9 running at 1.0GHz
• Main Memory: DDR-1066 1GByte
• NAND Flash 8 GByte

Display:

• 4.6" TFT LCD(800 x 320pixels)(* able to connect to ext. screen via HDMI out)Interface:
• Key & Jog (Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices

Analog Pre Out (Sabre32 ES9018K2M DAC):

• RCA, Dynamic Range: 127dB (Max 2Vrms, Stereo) THD +N: -110dB(0.0003%) Frequency Response : 20 ~ 80KHz(±0.2dB)

Digital out (Variable/Fixed)

• COAXIAL x 1: S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz
• TOSLINK x 1: S/PDIF, Sample rate: up to 24bit/192KHz
• USB Audio x 1: USB Audio Class2.0 Output
• HDMI Out x 1: HDMI Audio Out(*Shared with HDMI Out for external screen)

Digital Input:

• COAXIAL x 1: Sample Rate: up to 24bit/192Khz
• TOSLINK x 1: Sample Rate: up to 24bit/192Khz
• HDMI ARC IN: Up to PCM 192KHz/24BitUSB Audio Input (USB DAC)
• USB B type connector, USB Audio Class 2.0 input (support up to PCM 384Khz/32Bit, DSD Native 256, and DoP 128)

Bluetooth SINK (Receiver) BT 5.0 supports:

• Profile : A2DP/AVRCP Audio Codec: SBC, AAC, aptX, aptX LL, aptX HD

TUNER:

• DAB+ / FM Radio:• Selectable for DAB/DAB+ or FM Radio

USB Host:

• USB3.0(5V/1A) x 2 at rear
• USB2.0(5V/1A) x 1 at front

Network:

• Wired: Giga Fast Ethernet(10/100/1000Mbps)
• Wireless (Option) ** 802.11b/g/n WiFi USB dongle (Option)

Codec & Format supported:

• MQA, PCM 384Khz/32Bit, DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8KHz)
• HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC
• AIFF, AIF, AAC, M4A, MP3, WMA, CAF, Ogg Vorbis, PCM, M3U, PLS, etc

Network Protocols Supported:

• UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc

Internet Services:

Internet Radio: Airable

Online Music Services: Amazon Music, TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, HighResAudio, Spotify Connect

Mått:

• (HxBxD) 73x440260mm

Tillval:

• WiFi USB Dongle: Only the WiFi USB Dongle(802.11b/g/n) that the N25 manufacturer provides will work properly with the N25
• USB External Storage: Various brands of external USB storages available in the markets will work with the N25
• Bluetooth Transmitter: Only 'Bluetooth Transmitter Module' that the N25 manufacturer provides will work properly with the N25

All information hittar du här.
