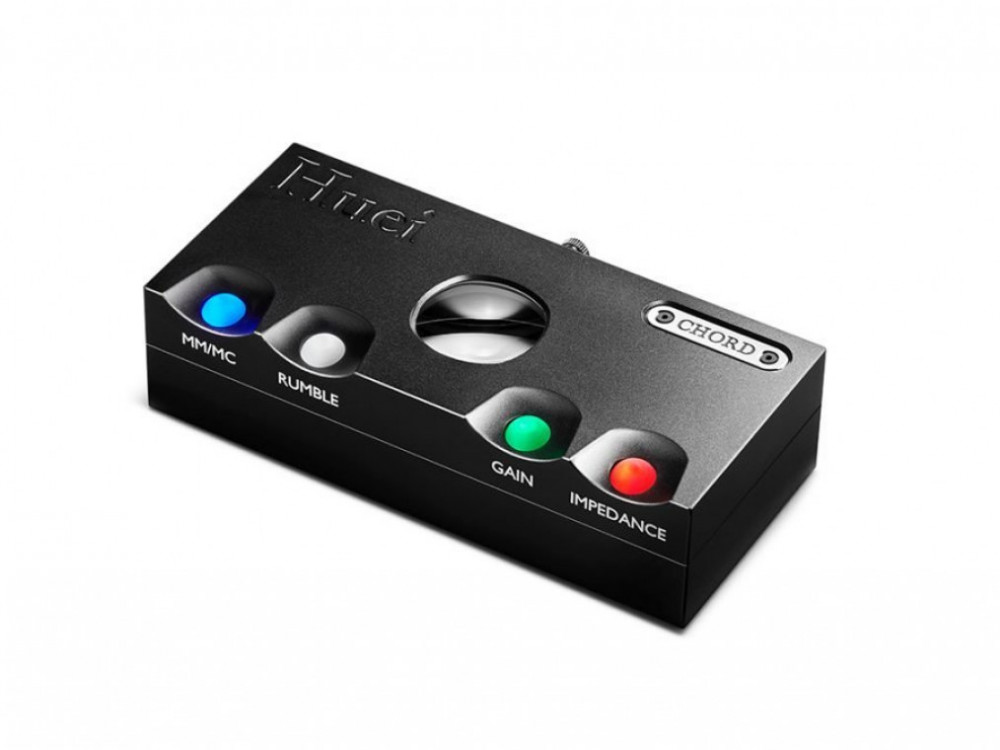

Chord Electronics Huei

Litet men högpresterande RIAA-steg

EGENSKAPER

• Supported cartridges: Moving magnet and moving coil
• Inputs: 1x Stereo unbalanced RCA input

Outputs:

• 1x Stereo unbalanced RCA output
• 1x Stereo balanced XLR output

Input Impedance:

• Moving magnet: 47kΩ
• Moving coil: 30Ω – 47kΩ, 12-step user selectable

Gain Range:

• Moving magnet: 25dB – 35dB, 8-step user selectable
• Moving coil: 48dB – 70dB, 8-step user selectable

Input Noise: 1.1nV/Hz

• Max Output Voltage RMS: 10v RMS
• Equalisation Response: RIAA Curve
• Equalisation Accuracy: +/- 0.1dB
• Frequency Response:
• RIAA Curve = 12Hz to 25kHz
• Rumble Filter: Rausch Slope -24dB per octave below 50Hz
• Output Impedance: 520Ω (resistive)
• Input Power Supply: 12v – 100v to 240v 50/60Hz PSU
• Dimensions: 41mm (H) x 160mm (W), 72mm (D)
• Weight: 657g
• Garanti: 2år
